Specification

Model	Port Size	Maximum Mixer Temperature		Min Water Temperature		Max Pressure		ΔP Max		Normal Flow Rate	Bypass Flow Rate	Weight
Model	Port Size	°C	°F	°C	°F	MPa	PSI	Bar	PSI	Kv	Kv	g	lb
TM01	DN25	100	212	2	35.6	1.6	232	0.5	7.5	10	15	692	1.52
TM02	DN32	100	212	2	35.6	1.6	232	0.5	7.5	10	15	700	1.54
TM11	DN25	100	212	2	35.6	1.6	232	0.5	7.5	10	15	692	1.52
TM12	DN32	100	212	2	35.6	1.6	232	0.5	7.5	10	15	700	1.54

Standard Temperature: 37°C, 45°C, 60°C

Special Temperature Available

The regulating valve no 6 should be set at 10% of the total water volume.

Unless noted, all set points listed have a +/-3 °C tolerance range.

Design Features

Easy installation with pipe wrench

Discharges the minimum amount of water required to prevent freeze damage

Sensitive to temperature only

Function:

The models TM 01 and TM 02 incorporate a fixed bypass; The control temperature for path A --- AB: approx 45 °C

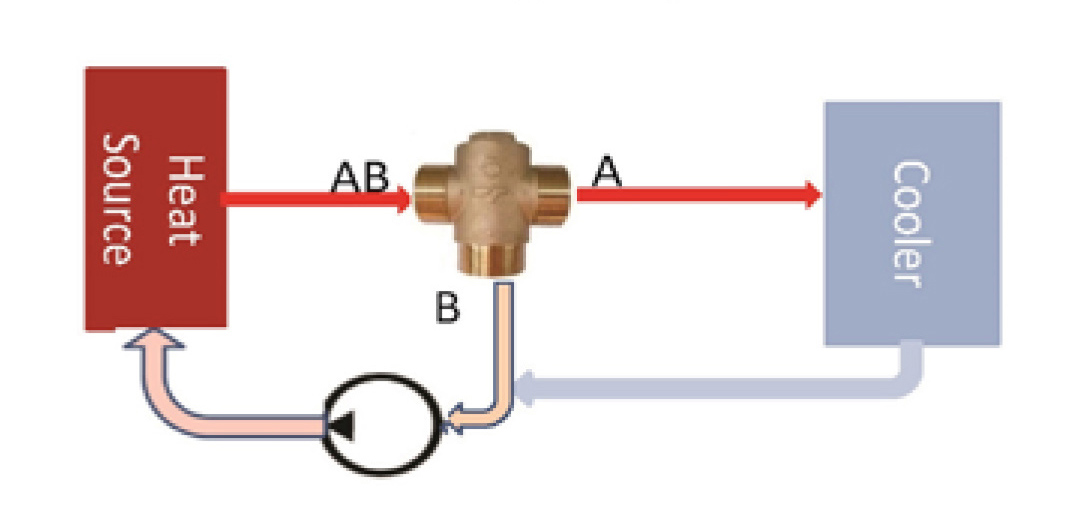

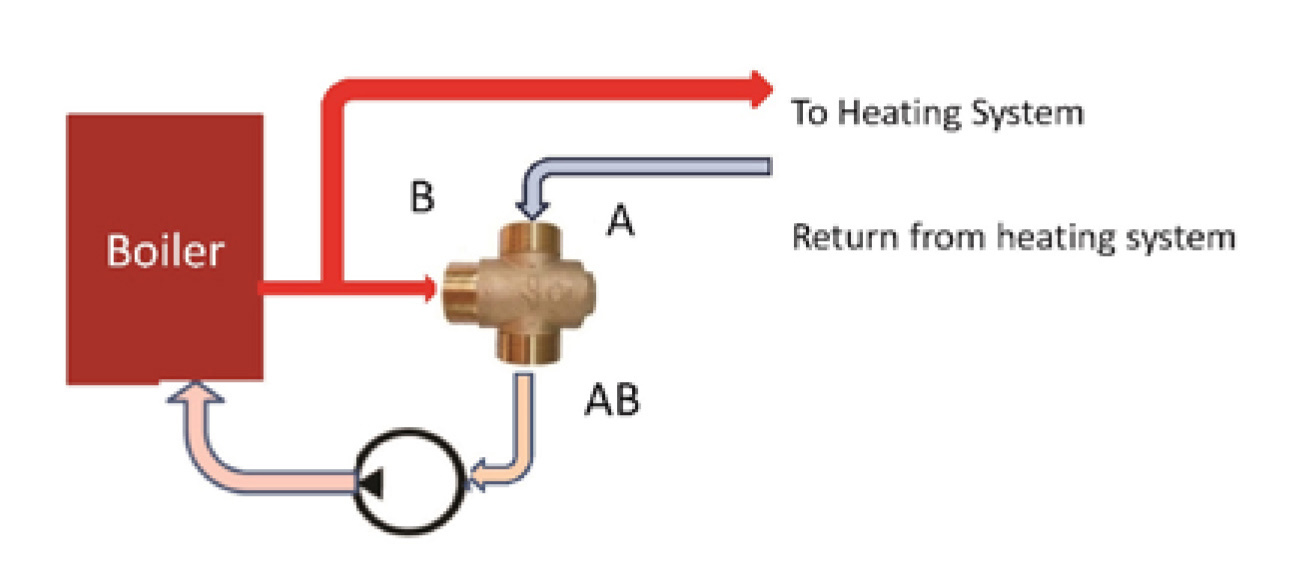

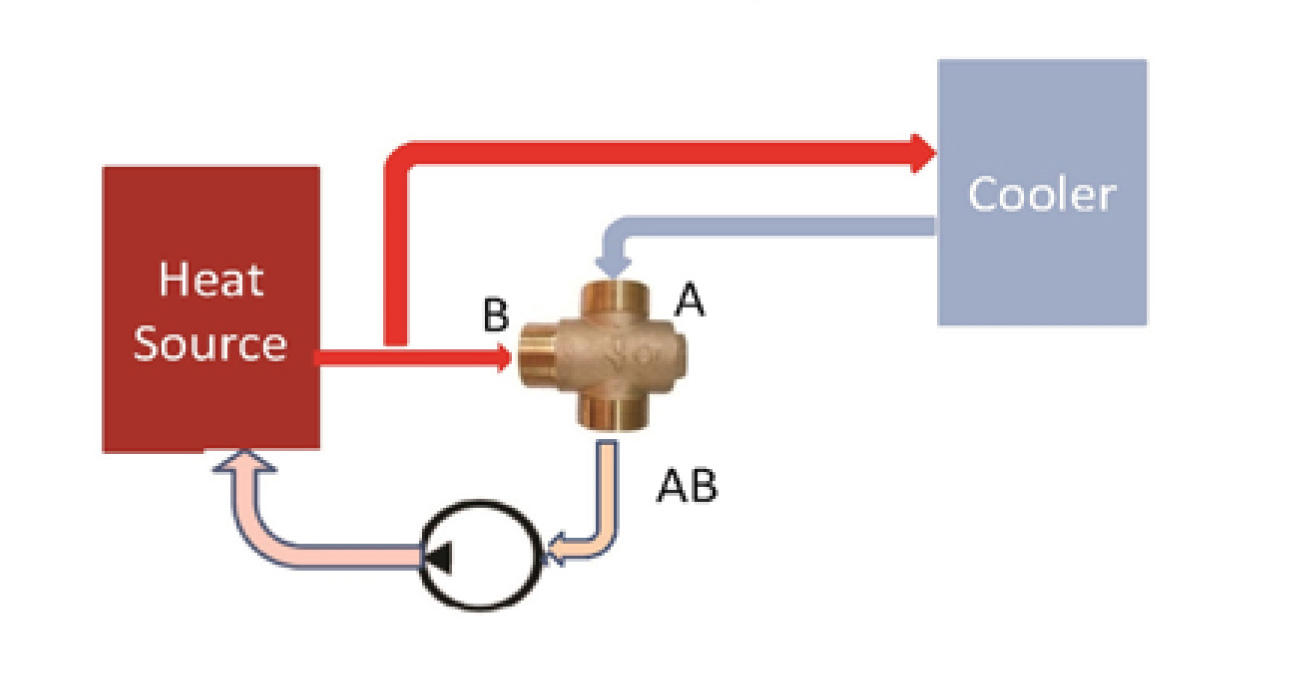

Installation of a regulating valve in the bypass between the boiler flow and return is recommended (see diagram)

The models TM11 and TM12 are designed with a closing function on the bypass At a mixing temperature of approx 50 °C the bypass is closed (B-AB branch) and opens again at a temperature of approx 42 °C.

The installation of a regulating valve in the bypass is not necessary.
