Multi-energies

Without Electricity

No electricity Power

American Standard

Reading Download

Specification

Model

Port Size

Temperature

(Central Degree)

Setting

Accurate

Maximum Operating Temperature

Maximum Operating Pressure

Net Weight

Flow Rate

°C

°F

°C

°F

°C

°F

MPa

PSI

DN15

37/45/55/60/required

98.6/113/131/140/required

±2

±3.6

130

266

1.0

145

290

0.639

1.5

DN20

335

0.738

1.5

Design Features

Easy installation with pipe wrench

Discharges the minimum amount of water required to prevent freeze damage

Sensitive to temperature only

Function:

Normally, diverting function has to be worked with electricity. This will led the installation complicated; Maintenance is inconvenient; The application is limited; Only technician can do the job. If the valve has the diverting function without electricity (Self Diverting), the users will avoid above matters.

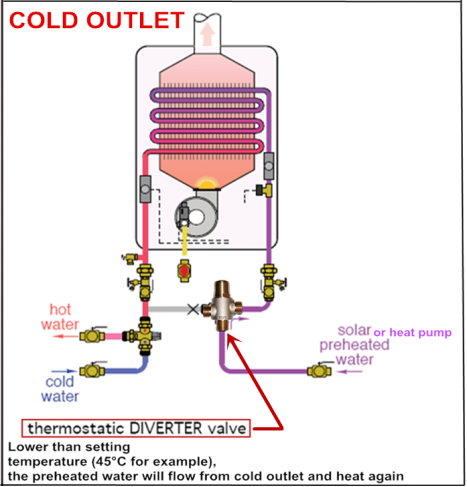

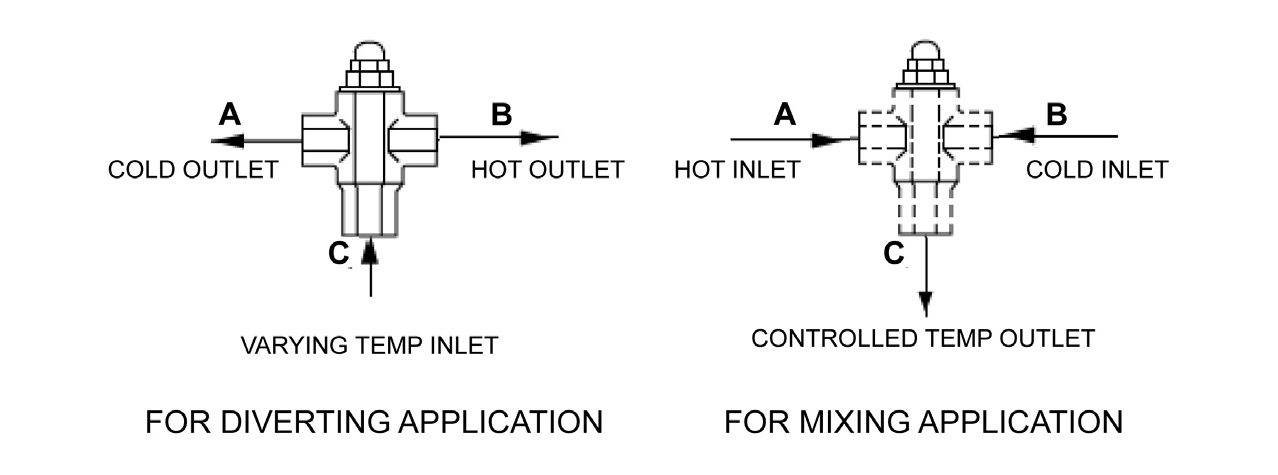

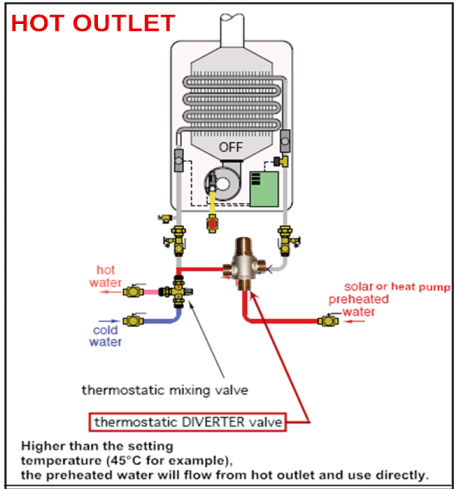

“Winning” Brand Self Diverting valve will divert or switch the inlet flow to either of two outlet ports depending on the fluid temperature.
