Instant Heating

Without Electricity

Self-Actuator

American Standard

Reading Download

Specification

Model	Port Size	Maximum Operating Temperature		Maximum Operating Pressure		Dimension		Net Weight		Flow Rate
Model	Port Size	°C	°F	MPa	PSI	mm	Inch	g	lb	Cv
TCC-0.5	1/2”NPT	130	266	1.4	203	Φ29*72	1.141.142.83	272	0.60	1.2
TCC-0.75	3/4”NPT	130	266	1.4	203	Φ35*80	1.381.383.15	318	0.70	1.7
TCC-1	1” NPT	130	266	1.4	203	Φ44*86	1.731.733.39	726	1.60	3.2
TCC-1.25	1-1/4”NPT	130	266	1.4	203	Φ54*119	2.132.134.69	1225	2.70	5.0
TCC-1.5	1-1/2”NPT	130	266	1.4	203	Φ60*119	2.362.364.69	1724	3.80	7.5
TCC-2	2 "NPT	130	266	1.4	203	Φ76*124	2.992.994.88	2540	5.60	14.0

Standard Temperature: 37°C, 45°C, 60°C

Special Temperature Available

Design Features

Easy installation with pipe wrench

Discharges the minimum amount of water required to prevent freeze damage

Sensitive to temperature only

Function:

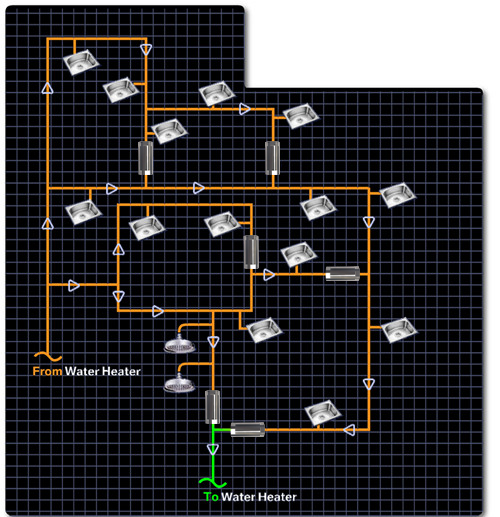

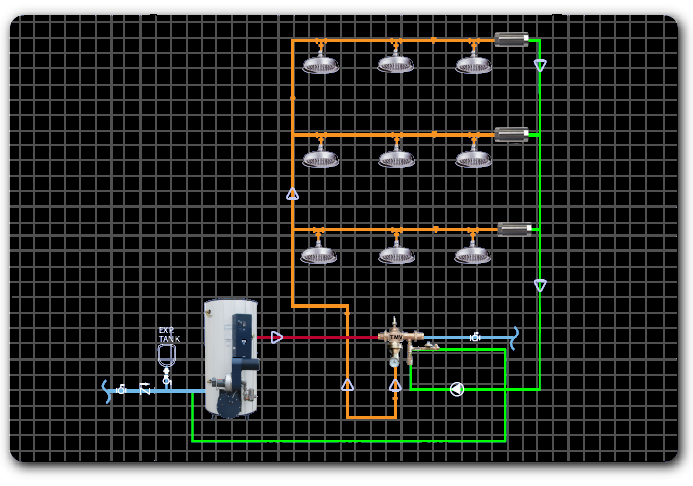

This constant, automatic response to water temperature enables each hot water branch to quickly and consistently deliver the right temperature of hot water to each connected fixture.
